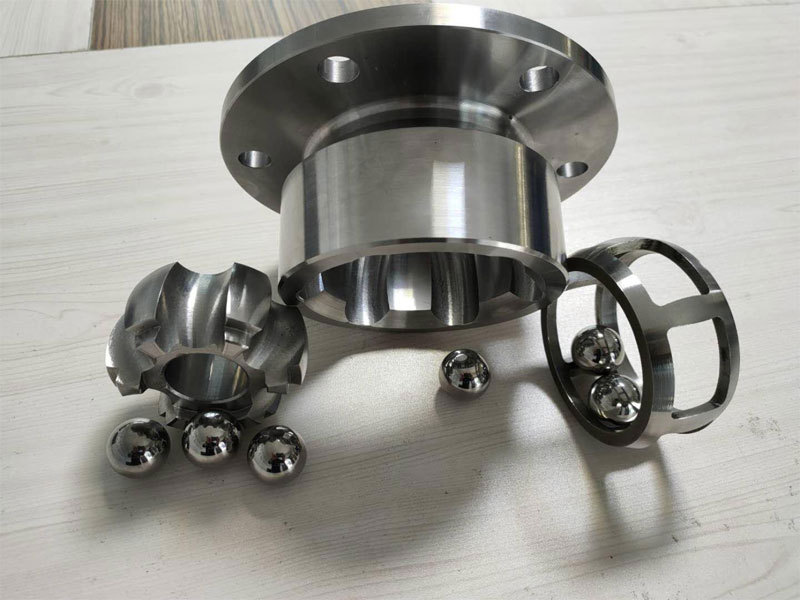

Uniform Speed Shaft Ball Bearing Universal Joints
1.KUDOSWORLD Uniform Speed Shaft Ball Bearing Universal Joints is very suitable for high torque and high misalignment applications.
2.These highly engineered couplings allow full torque transmission and efficiency at any angle, providing unparalleled flexibility in setting up the driveline. The cable-stayed cardan shaft is available in various sizes and configurations and can be customized to work in almost any application.
- Information
- Video
- Download
KUDOSWORLD Uniform Speed Shaft Ball Bearing Universal Joints with its characteristics, realizes the continuous rotation of the two shafts which are not on the same axis, and transmits torque in a reliable way. The most distinctive features of universal joint are a relatively bigger angular compensation allowed structurally, compact structure, high transmission efficiency, high production rate and long service life. Universal joints with different structures could tolerate different included angles which range from 5 to 45 degrees
Features & Benefits:
High torque
Nitrided spline section for extra wear life
Application flexibility – More than 30 standard sizes with short coupled, fixed length, long slip shaft designs
Engineered-to-order capabilities for custom features or special requirements
Up to 44 degrees angular joint capacity, Compensate for parallel (radial) and axial misalignment
98%+ power efficiency in most applications
According to Universal Joint's structure, the universal shaft can be divided into single structure type, double structure type and telescopic type.

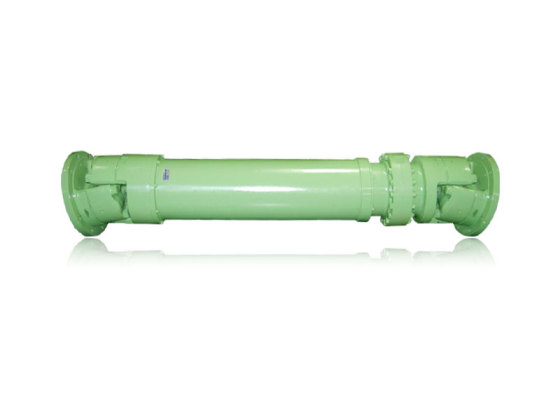

According to Universal Joint's use and bearing type, Universal shaft can be also divided into Uniform speed bearing type with ball bearing, high-speed rotating type with needle roller bearing and cross kit bearing, and low-speed type with cross pin and no bearings.

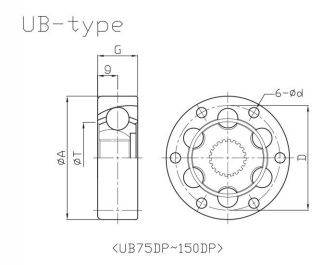

Uniform speed bearing type with ball bearing
Please download our catalog for more information
Product Quality
All products are applicable to GB, ISO, DIN standards, also can meet API, ASME, AS standards if required.
Customer Acceptance
we are now well recognized and highly praised by our customers around the world with our high-quality, innovative and cost-effective products.
