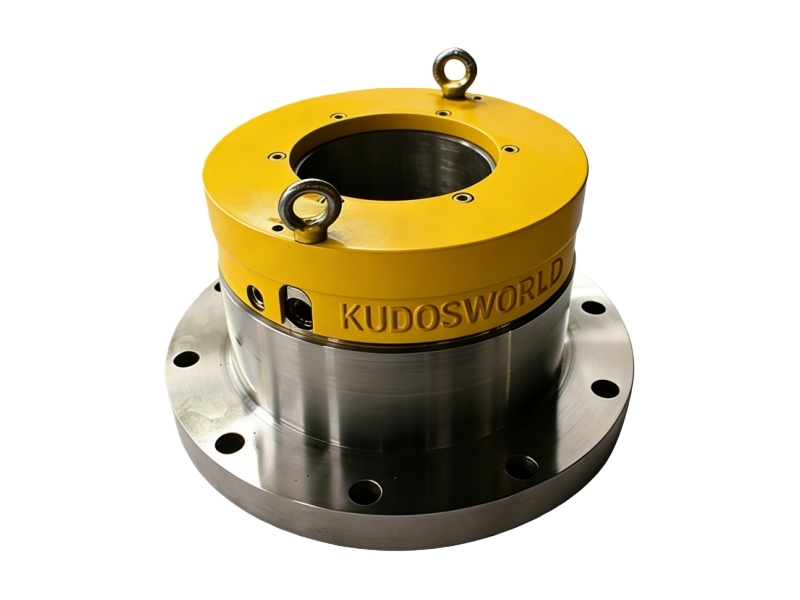

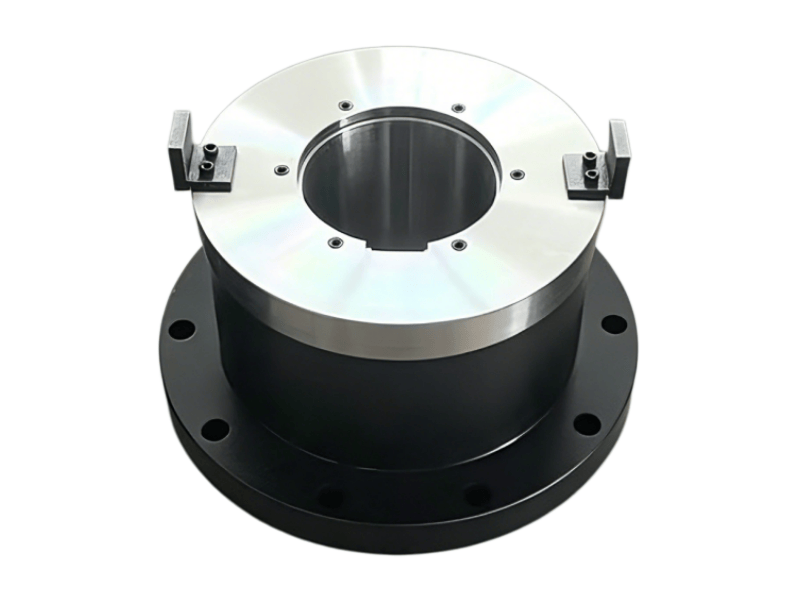

Hydraulic Safety Couplings
KUDOSWORD Hydraulic Safety Couplings is a Torque Limiting Couplings.
KUDOSWORD Hydraulic Safety Couplings is mainly applied in industries such as metallurgy, shipping, power generation and petrochemicals.
- KUDOSWORLD
- CHINA
- 6-8 WORKING WEEKS
- 2,000 SETS/YEAR
- Information
Working Principle of the Hydraulic Safety Coupling:
High-pressure oil is injected into the oil chamber between the double-layer sleeves. The outer sleeve expands outward and tightly presses against the hub, while the inner sleeve clamps the transmission shaft synchronously to achieve torque transmission. When the load torque exceeds the original set value of the SafeSet Couplings, the SafeSet Couplings will slip on the transmission shaft, the shear tube will be cut off by the shear ring, the high-pressure oil in the oil chamber will be released, and the hydraulic safety coupling will slide relative to the transmission shaft, thereby protecting the load equipment.
Features of the KUDOSWORD SafeSet Couplings:
High-efficiency and reliable torque transmission;
Torque adjustable and settable based on oil pressure;
Quick and convenient installation and disassembly;
Compact structure.
Notes:Special hydraulic oil must be used for the SafeSet Couplings. Avoid frequent pressurization operations to prevent seal failure and metal fatigue.
For more information and inquiries about SafeSet Couplings, please contact Kudosworld—we are the experts in couplings.
