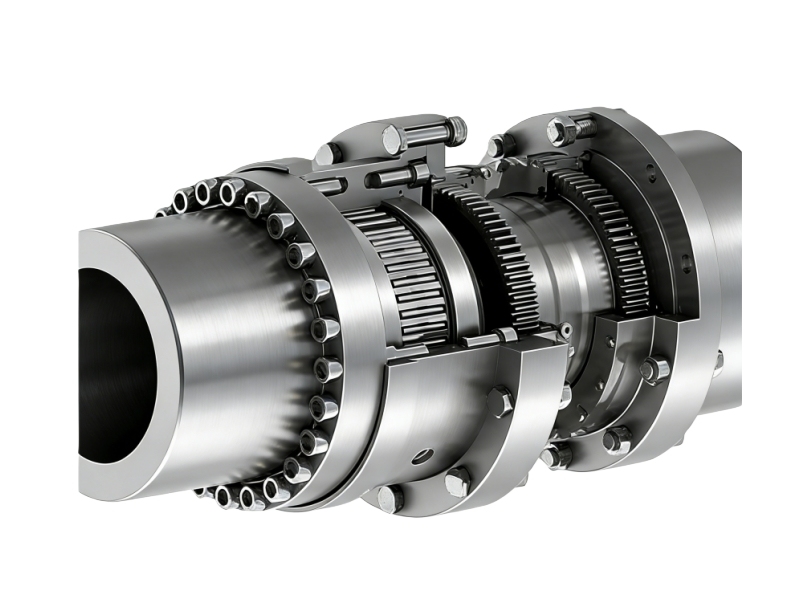

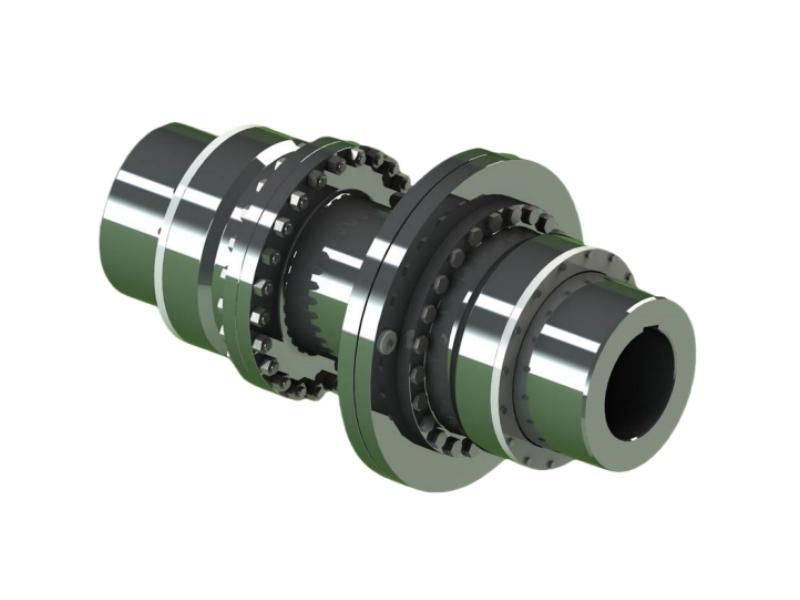

Shear Pin Type Safety Gear Coupling
The shear pin type safety gear coupling is a device designed to protect the safe operation of mechanical equipment. It mainly consists of a coupling body, shear pins, adjustable screws, springs, and other components.
- KUDOSWORLD
- CHINA
- 6-8 WORKING WEEKS
- 2,000 SETS/YEAR
- Information
Working Principle and Structure of Shear Pin Type Safety Gear Coupling
Shear Pin Cartridge coupling is a device designed to protect the safe operation of mechanical equipment. It mainly consists of a coupling body, shear pins, adjustable screws, springs, and other components. When subjected to overload or jamming, the shear pins break, causing the two coupling halves to separate within a short period, thereby protecting the equipment from damage.
The primary function of this design is to utilize the shearing action generated by elastic elements to disconnect the coupling in the event of abnormal loads, preventing equipment damage. Meanwhile, due to the coupling's compact structure and tight integration with mechanical transmission systems, it offers high stability and reliability.
Application Examples of Shear Pin Cartridge coupling
The shear pin type safety gear coupling is a widely used safety device in industrial mechanical equipment. For instance, it is often installed on the rotating shafts of machine tools to protect both the shafts and the machine tools themselves from damage. Additionally, it is extensively applied in industries such as cigarette making machinery, packaging machinery, food processing equipment, and chemical processing equipment.
