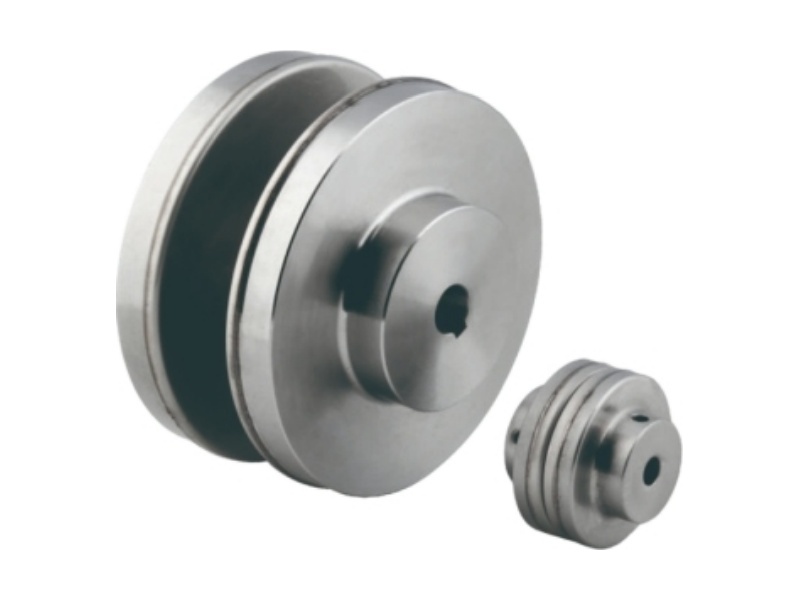

Planar magnetic coupling
Magnetic couplings are particularly well-suited for lightweight equipment operating at low to medium speeds with frequent forward and reverse rotation. As non-contact power transmission devices, they rely on multi-stage magnetic force transmission within a strong magnetic field. They offer numerous advantages, including non-contact operation, zero wear, ease of installation, tolerance for misalignment, vibration resistance, explosion-proof capabilities, isolation capabilities, and leak prevention.
- KUDOSWORLD(KWD)
- CHINA
- 6-8 WORKING WEEKS
- 2,000 SETS/YEAR
- Information
Key features of planar magnetic couplings:

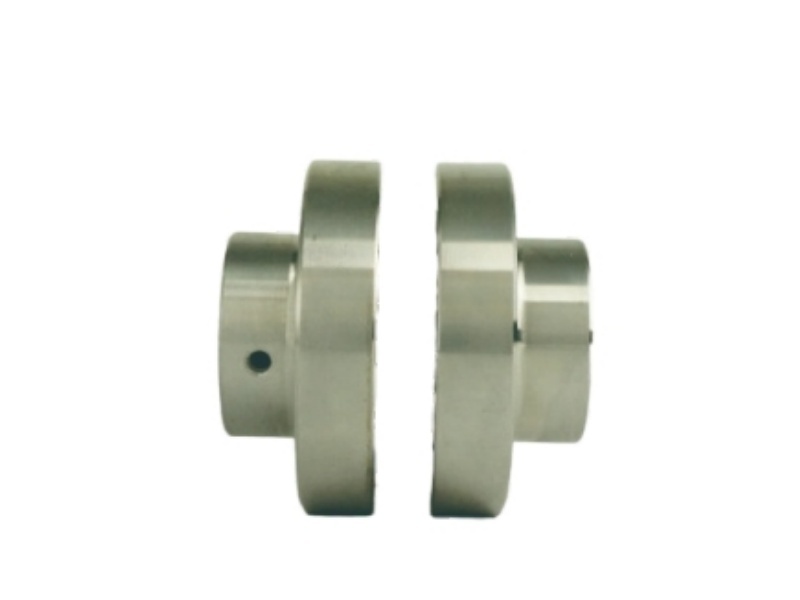

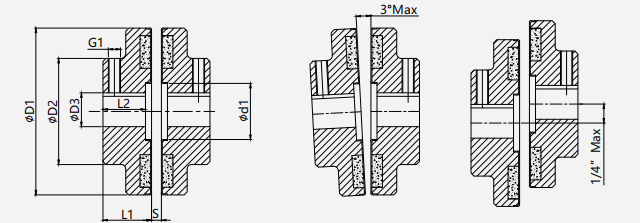

1. Simple structure: Planar magnetic couplings typically consist of two discs of equal diameter, with magnets arranged in an alternating North-South (N-S) pole pattern. During operation, the discs are mounted on the driving and driven shafts respectively, separated by a specific air gap. This configuration simplifies installation and maintenance.
2. Non-contact power transmission: Power is transmitted via magnetic force without direct mechanical contact, resulting in zero wear, low noise, and minimal vibration. The absence of mechanical wear during operation extends the service life of the coupling.
3. High precision and stability: Driven by magnetic force rather than friction, these couplings offer high transmission efficiency, precision, and stability. Furthermore, their isolation and leak-proof capabilities further enhance the overall performance and stability of the equipment.
4. Wide range of applications: Planar magnetic couplings are particularly well-suited for lightweight equipment operating at low to medium speeds with frequent forward and reverse rotation. Thanks to non-contact power transmission, they respond rapidly to sudden load increases or equipment jams by interrupting power transmission, thereby protecting the motor from overload damage.
5. Easy installation, misalignment tolerance, and vibration resistance: These couplings are relatively easy to install and can accommodate a certain degree of misalignment and vibration, ensuring reliable operation across various working conditions.
